Quick Details

  • Place of Origin: Taiwan
  • Brand Name: GeoBox
  • Model Number: Videll wall controller
  • Max input: 4k UHD/3840x1080@60
  • Scalability: Up to 15x15 matrix display
  • Display devices: Any LCD including TV & monitor
  • Bezel: Pixel by pixel adjustment
  • G-403: 4 channel iregular video wall controller
  • G-405: 4 channel 4k video wall controller
  • Multiple content display: PIP/POP, multiple windows
  • Aspect ratio: Dynamic aspect ratio adjustment
  • Image position shift: Dynamic continuous position shift
  • Burn-in mark protection: Auto image shift to protect LCD

Packaging & Delivery

Packaging Details: One internal white box with another corrugated protection box
5 units in one carton
Delivery Detail: under 10 units within 3 days

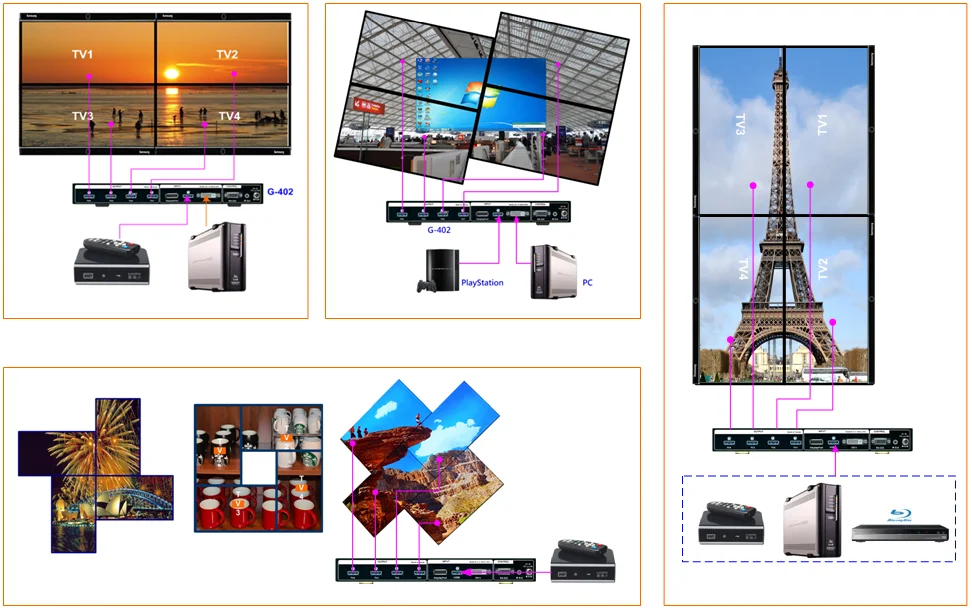

GeoBox Video wall controller with Irregular array, PIP and image flip for HDMI video wall and TV wall is a pure hardware video wall controller for TV wall. In combining with different models, it provides all kinds of display modes without PC system. It can offer many advantages that PC based video wall controller can't:

  1. More flexible for multiple inputs connections with external devices such as Blue Ray, Media Player, Game, mobile devices and PC system.
  2. 4k/2k loop out port for multiple units daisy chain connection.
  3. Revoltuionary prodct for user to create any type of irregular video wall at any display array and angle using differnt panel size, resolution and bezel by input two coordinates of each LCD.
  4. No HDCP constraints due to digital copy protection.
  5. No video lag or synchronization issue.
  6. Able to use Media player or mobile devi, image es to replace PC for repeat content playback.
  7. Pixel base overlap region (bezel) adjustment, image cropping and position alignment up to 900 pixels at any edge.
  8. With PIP/POP, image 90/180/270 flip and image rotation.
  9. Dynamic aspect ratio change and position shift.
  10. Looping playback mode to create special effect for advertisement.
  11. Auto image shift to protect LCD from burn-in mark.
  12. Able to do portrait TV wall without rotating singal source.
  13. Multiple input ports to serve as scaler switcher to simplify the system connection.
  14. Able to display 2.35:1 movie in 16:9 aspect ratio video wall without blank borders at top and bottom edges.
  15. Allow multiple contents displayed in one video wall.
  16. Support up to 4k/2k @30Hz or 3840x1080 @60Hz inputs without compress for high resolution video wall display.
  17. No PC or software tool is required. Easy to use, more reliable.

GeoBox was designed for professional installation. Due to not PC structure & low power consumption, it provides quick boot up, low latency, no image lag and utmost reliability. Working with PC system, it doesn't occupy any PC CPU resource and let CPU with full power for other operations without lag.



Product selection guide:

  1. G-405: 4K UHD 4 channel video wall controller, cascade up to 15x15 displays.
  2. G-402: simplest video wall controller with more than 20 preset display profiles and PIP function, controller by Dip Switch selection without PC or software.
  3. G-403: In addition to preset display mode selected by Dip SW, user can create any type of video wall using different LCD size, resolution and bezel with irregular array at any anlge by input two coordinates of each LCD.



Our Services

 Warranty: 2 years
