8 CH 4k 60fps video wall controller

FOB Reference Price:Get Latest Price
$3,300.00 / Sets | 1 Set/Sets (Min. Order)
Video Wall Controller
Report Suspicious Activity
Quick Details
Place of Origin:
Taiwan, China
Brand Name:
Model Number:
Processing channel:
Control up to 8 screens
Max. input:
4096*2400 @60 fps
Max. Output:
8x CH, WUXGA / Full HD
Input port:
2x HDMI 2.0, HDCP 2.2
Loop Out:
2x 4k/60 loop out for cascade
Image rotation/cropping:
Independent in each channel
Creative video wall:
Flexible with different size of LCD
Multi-window display:
Max. dual sources
Image overlap:
Up to +_900 for projector EB
Power consumption:
DC12V/23W (100v-240V PSU)
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
One internal white box with another corrugated protection box
5 units in one carton
Taoyuan, Keelung

4k video wall controller

GeoBox G408 8 screen 4k 60fps video wall controller



Product Description


GeoBox G408 is 8 channel 4k/60 fps Video Wall controller. It is designed with two processing modules. Each processing module consists of 1x HDMI 2.0 input, 1x HDMI 2.0 loop-out port for daisy chain connection and 4 synchronized HDMI outputs. It can serve as one eight channel video wall controller or two quad channel video wall controllers. Each output has independent image rotation/flip, scaling, cropping and color adjustment to allow great freedom in creating video wall with variable display scales and styles. Support pixel to pixel true 8k/4k video wall through 4x 4k input sources and two units of G408.

It is pure hardware, standalone system and easy-of-use. All operations can be executed through IR remote controller, USB, RS232 or Ethernet. No additional PC or appropriate software is required in the setup.



1.         Two processing modules, each module consists of below I/O ports.

-          Input: 1x HDMI 2.0b, HDCP: 2.2/1.4

-          Output: 4x HDMI up to 1080P & WUXGA

-          1x HDMI 2.0 loop out port from adjacent HDMI input port for daisy chain connection.

2.        It can serve as two Quad channel processors or one 8 channel processor while user connects two processing modules through loop out port.

3.         Support up to 4096x2400@60Hz input source.

4.        All inputs support HDCP 1.4/2.2. Outputs support HDMI 1.4.

5.        Loop-through port for multiple units cascade in any scale display.

6.        Cropping ZOOM range up to 15 and pixel base position alignment up to +_ 900 pixels in H&V directions for flexible image capture, cropping, position alignment, bezel compensation & asymmetric video wall.

7.         Set overlapped output up to 900 pixels for projector edge blending application.

8.        Flexible aspect ratio adjustment in each edge up to +_ 900 pixels.

9.        Independent Image color adjustment in each channel.

10.     Independent image rotation and flip in each channel for variable landscape, portrait and irregular video wall.

11.     Selectable output resolution and programmable EDID to optimize video quality.

12.     Frame-Lock function to get perfect synchronization among output channels.

13.     Support HDR 10 high dynamic range color input signal.

14.     Easy setup via IR, USB, RS232 & Ethernet. No PC is required.

15.     Ready for 24/7 working environment.


Case study:



Single unit application



Dual Content display


Multi-units cascade




Flexible Aspect Ratio

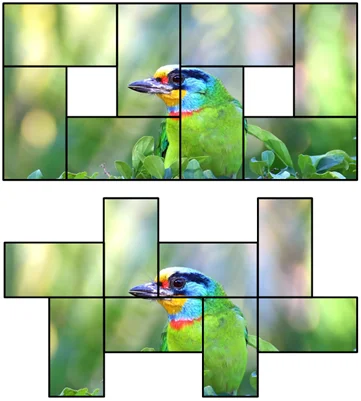

Creative Video Wall




Cropping and create overlap region for projector edge blending

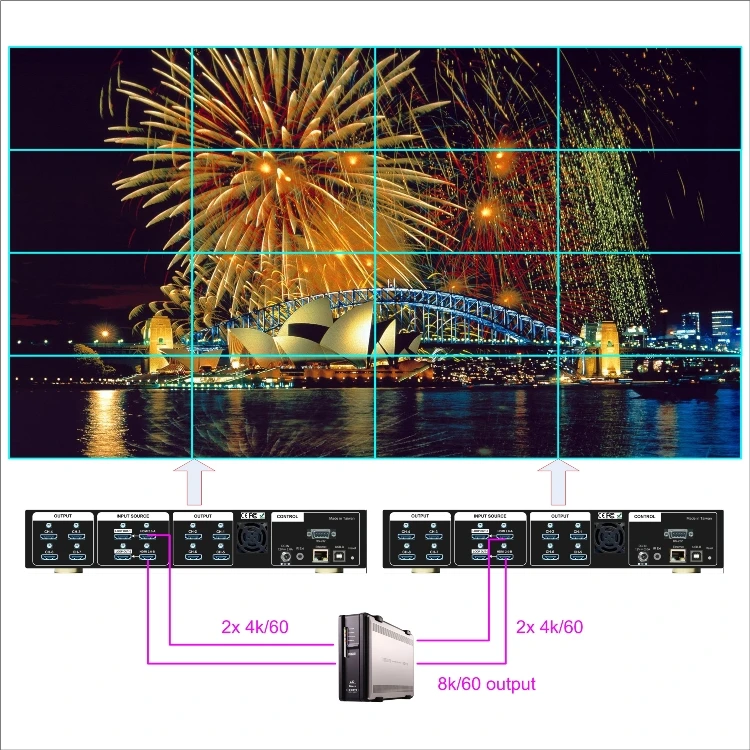

True 8k display





Our Services

 Warranty: 2 years, paid extension up to 5 years
