4 CH 4k video wall controller with matrix SW

FOB Reference Price:Get Latest Price
US $1,000-2,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan
Brand Name:
GeoBox
Model Number:
G-406
Max. input:
DCi/UHD HDMI 2.0, HDCP 2.2
Max. Output:
WUXGA / Full HD
Image processing:
10 bits, 4:4:4, 3D de-interlace
Loop out port:
Dual HDMI 2.0
Image crop/rotate/flip:
Independent in each channel
Creative video wall:
H&V with all size of LCD
Aspect ratio:
Flexible adjustment in H&V
Multi-window display:
1/2/3/4 contents on 4x LCD
Image position shift:
Up to +_900 in H&V
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
One internal white box with another corrugated protection box
5 units in one carton
Port
Taoyuan, Keelung
Lead Time :
under 10 units within 3 days

4k video wall controller

GeoBox G406 4 screen 4k video wall controller with Matrix SW function







Product Description



        GeoBox G406 is new generation DCi/UHD 60fps four screens video wall controller to allow great freedom in creating any scale video wall with multiple contents and different LCD arrays. It incorporates two HDMI 2.0, two DisplayPort 1.2 inputs and two HDMI 2.0 loop-through ports with HDCP 2.2/1.4 as well as four synchronized Full HD outputs. Each output has independent image rotation/flip, scaling, cropping and color adjustment. Support true 8k/4k video wall through multiple 4k input source with pixel to pixel video quality.

        G406 is designed with matrix switcher function to display 1, 2, 3 or 4 independent contents on four LCD video wall. Two HDMI 2.0 loop-through ports are designed for multiple unit cascade and allows user to select different contents for entire video wall.

It is pure hardware, standalone system with easy-of-use. All operations can be implemented through front panel keypads, IR remote controller, USB, RS232 or Ethernet. No additional PC, Zero Client, appropriate device or software tool is required.

        GeoBox G406 is new generation DCi/UHD 60fps four screens video wall controller to allow great freedom in creating any scale video wall with multiple contents and different LCD arrays. It incorporates two HDMI 2.0, two DisplayPort 1.2 inputs and two HDMI 2.0 loop-through ports with HDCP 2.2/1.4 as well as four synchronized Full HD outputs. Each output has independent image rotation/flip, scaling, cropping and color adjustment. Support true 8k/4k video wall through multiple 4k input source with pixel to pixel video quality.

        G406 is designed with matrix switcher function to display 1, 2, 3 or 4 independent contents on four LCD video wall. Two HDMI 2.0 loop-through ports are designed for multiple unit cascade and allows user to select different contents for entire video wall.

It is pure hardware, standalone system with easy-of-use. All operations can be implemented through front panel keypads, IR remote controller, USB, RS232 or Ethernet. No additional PC, Zero Client, appropriate device or software tool is required.


Features:

1.     4x UHD/DCi 60fps inputs, 4x WUXGA/1080p outputs with flexible multi-unit cascade.

2.     Support up to 4096x2400@60Hz input through HDMI 2.0 & DisplayPort 1.2.

3.     All inputs and outputs support are HDCP compliance: inout: HDCP 2.2, output: HDCP 1.4

4.     Matrix switch function to allow multiple window display, 1/2/3/4 contents on 4x LCD

5.     Dual Loop-through ports for multiple units cascade in any scale display with selectable inputs.

6.     Pixel base position alignment up to +_ 900 pixels in H&V for flexible image capture, cropping, position alignment, bezel compensation & irregular video wall.

7.     Set overlap output up to 900 pixels for projector edge blending application.

8.     Independent Image color adjustment, cropping, scaling and bezel correction in each channel.

9.     Independent image rotation and flip/mirror in each channel for variable landscape, portrait and irregular video wall display.

10.  Selectable output resolution and programmable EDID to optimize video quality.

11.  Flexible aspect ratio adjustment in each edge up t0 +_ 900 pixels.

12.  Frame-Lock function to get perfect synchronization among output channels.

13.  Support HDR high dynamic Range color input signal.

14.  G406 can sever as one Quad channel processors or two independent dual channel processors to support up to 8k width input signal from one G406.

15.  Easy setup via IR, front panel Keypad, USB, RS232 & Ethernet. No PC is required.

16.  Flexible RS232 + Ethernet simultaneous system control.

17.  Support super high resolution content (more than 8k/4k) through multiple 4k inputs.

18.  Ready for 24/7 working environment.



Case study:

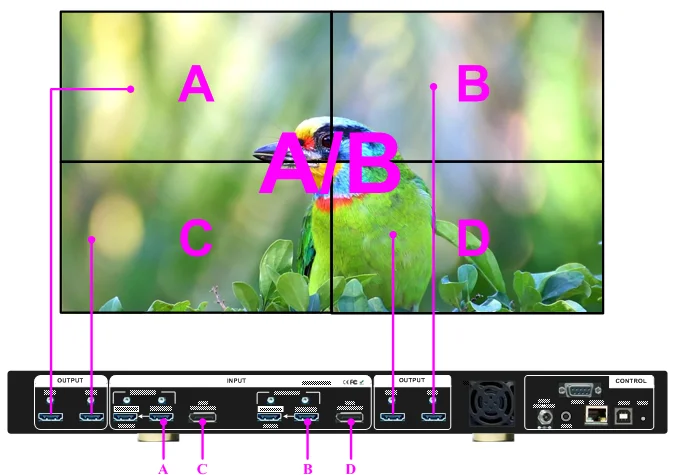

Single unit application with multi-window display

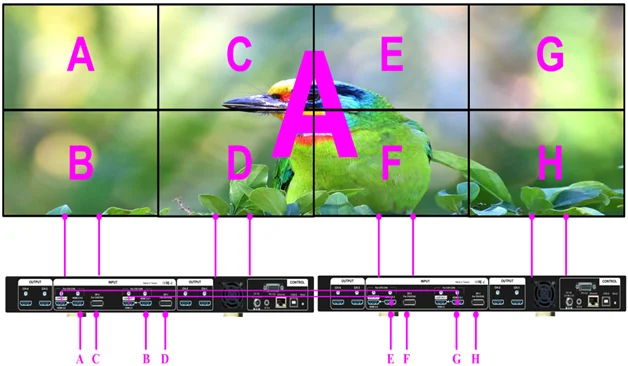

Multi-units cascade

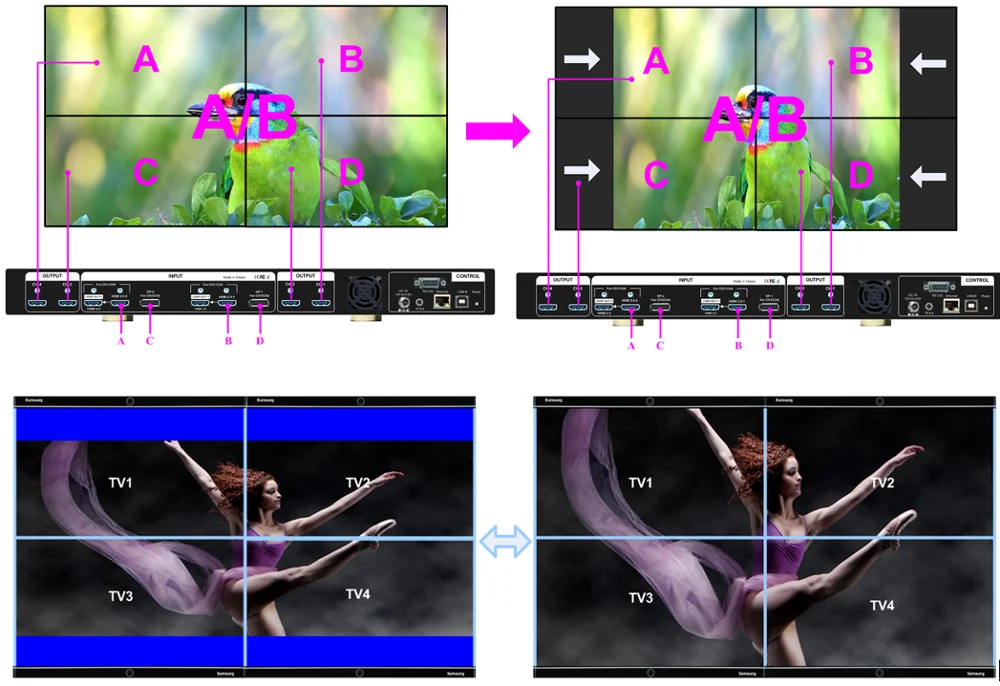

Flexible Aspect Ratio

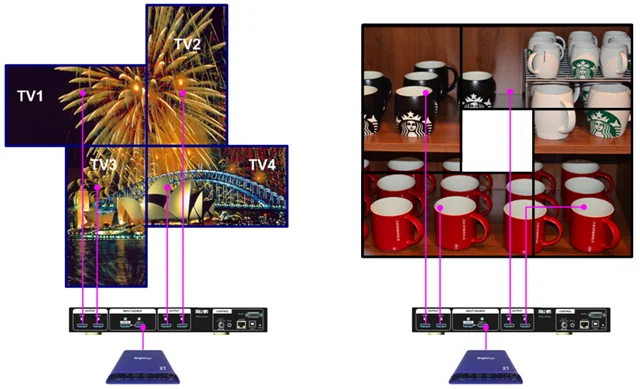

Creative Video Wall

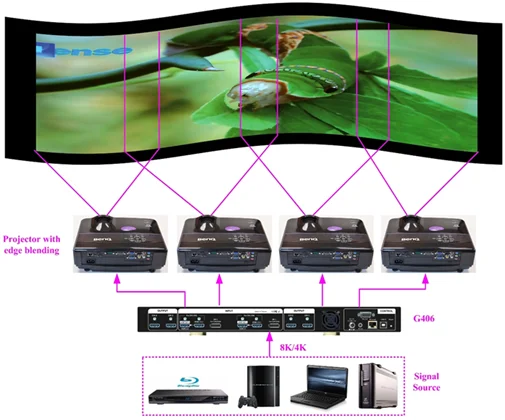

Cropping and create overlap region for projector edge blending

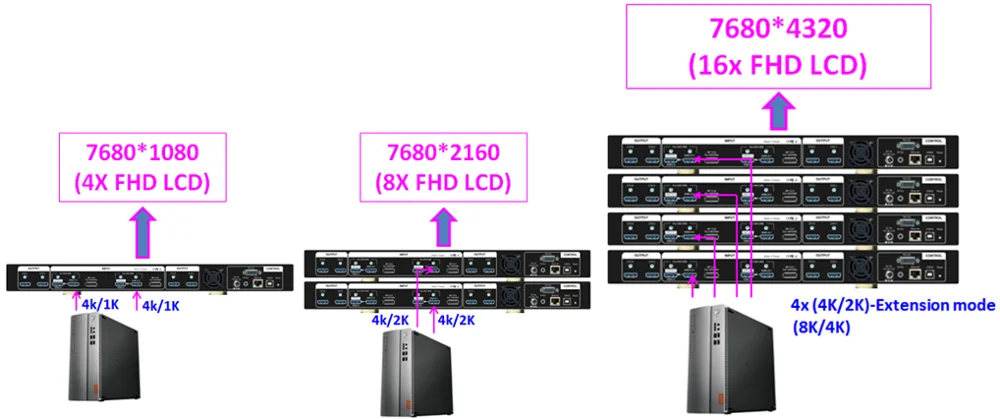

Create High resolution system









Our Services

 Warranty: 2 years, paid extension up to 5 years
