4 CH 4k 60 fps video wall controller

FOB Reference Price:Get Latest Price
$2,100.00 / Sets | 1 Set/Sets (Min. Order)
Video Wall Controller
Report Suspicious Activity
Quick Details
Place of Origin:
Taiwan, China
Brand Name:
Model Number:
Processing channel:
Control up to 4 screens
Max. input:
4096*2400 @60 fps
Max. Output:
4x CH, WUXGA / Full HD
Input port:
1x HDMI 2.0, HDCP 2.2
Loop Out:
1x 4k/60 loop out for cascade
Image rotation/cropping:
Independent in each channel
Creative video wall:
Flexible with different size of LCD
Multi-window display:
Max. dual sources
Image overlap:
Up to +_900 for projector EB
Power consumption:
DC12V/12W (100v-240V PSU)
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
One internal white box with another corrugated protection box
5 units in one carton
Taoyuan, Keelung

4k video wall controller

GeoBox G406L 4 screen 4k 60 fps video wall controller



Product Description


GeoBox G406L is 4channel 4k/60 fps Video Wall controller. It is simplified mode of G406. Each G406L consists of 1x HDMI 2.0 input, 1x HDMI 2.0 loop-out port for daisy chain connection and 4 synchronized HDMI outputs. Each output has independent image rotation/flip, scaling, cropping and color adjustment to allow great freedom in creating video wall with variable display scales and styles. Support pixel to pixel true 8k/4k video wall through 4x 4k input sources and 4 units of G406L.

It is pure hardware, standalone system and easy-of-use. All operations can be executed through IR remote controller, USB, RS232 or Ethernet. No additional PC or appropriate software is required in the setup.




² 1x HDMI 2.0 inputs, 4x WUXGA/1080p outputs with flexible multi-unit cascade.

² Support up to 4096x2400@60Hz input.

² All inputs and outputs support HDCP 1.4/2.2.

² One Loop-through port for multiple units cascade in any scale display.

² Pixel base position alignment up to +_ 900 pixels in H&V for flexible image capture, cropping, position alignment, bezel compensation & irregular video wall.

² Set overlap output up to 900 pixels for projector edge blending application.

² Independent Image color adjustment in each channel.

² Independent image rotation and flip/mirror in each channel for variable landscape, portrait and irregular video wall display.

² Selectable output resolution and programmable EDID to optimize video quality.

² Flexible aspect ratio adjustment in each edge up t0 +_ 900 pixels.

² Frame rate conversion and 50Hz in / 50Hz out to keep video quality without artifact.

² Frame-Lock function to get perfect synchronization among output channels.

² Support HDR high dynamic Range color input signal.

² Easy setup via IR, USB, RS232 & Ethernet. No PC is required.

² Ready for 24/7 working environment.


Case study:



Single unit application




Multi-units cascade

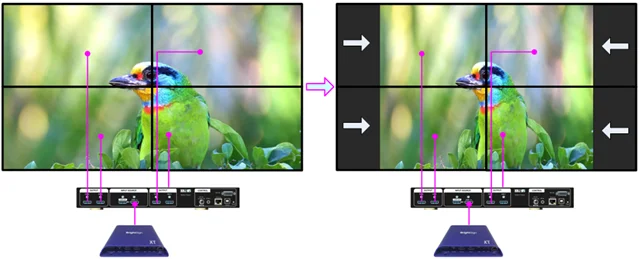

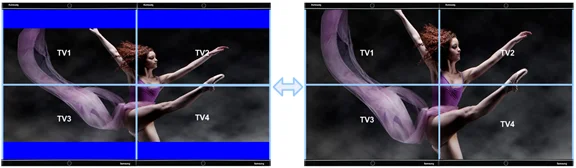

Flexible Aspect Ratio




Creative Video Wall


 Cropping and create overlap region for projector edge blending




Our Services

 Warranty: 2 years, paid extension up to 5 years
